1. Features

1.1. Adopt high-speed MCU and advanced algorithm to ensure the accuracy and efficiency of measurement. The instrument supports fast measurement and continuous measurement, and the measurement speed can reach 0.3s/time.

1.2.It meets the standards of ISO2178,DIN,ASTM and BS..

1.3. The wear-resistant metal probe can ensure stable data when measuring on hard or rough surfaces, and the probe wears more than 500,000 times.

1.4.Use LCD display to ensure good visual effect.

2. Technical parameters

* Standard measuring range:0~1500μm, Resolution: 0.1μm (0-99.9μm), 1μm (100-1500μm)

* Measurement Accuracy : ±2%H+1μm

* Thinnest Substrate: 0.3mm

* Minimum Curvature: convex 5mm/concave 25mm

* Power Supply: 2×1.5v AAA batteries

* Unit Options : μm / mil

* Measurement Mode: Single/Continuous

* Product Size: 101×61×26mm

* Product Weight: 54g (without batteries)

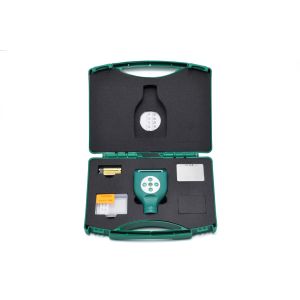

3.Package list

* Main machine × 1

* Iron substrate × 1

* AAA battery × 2 ( Not included if by air )

* Standard films × 5 (50 100 250 500 1000μm)

* Manual × 1

* Warranty Card × 1

* Packing box × 1

Hunan Lingyang Electronic Technology Co., Ltd., established in 2017, is a professional manufacturer of coating thickness gauges located in Changsha, Hunan.

With years of dedicated R&D, we possess multiple industry patents, offering advanced and reliable solutions for precise thickness measurement. Our products are known for high accuracy, user-friendly operation, and durability, serving clients across various global industries.

Committed to innovation and quality, we ensure every gauge meets the highest standards, providing exceptional technical support. Lingyang Electronic is your trusted partner for all your coating inspection needs.
